Design features
Brilliant visuals
Exceptional contrast: Experience incredible color and superior black performance with a contrast ratio of 2000:1 on world's first 31.5" 4K monitor with IPS Black technology.

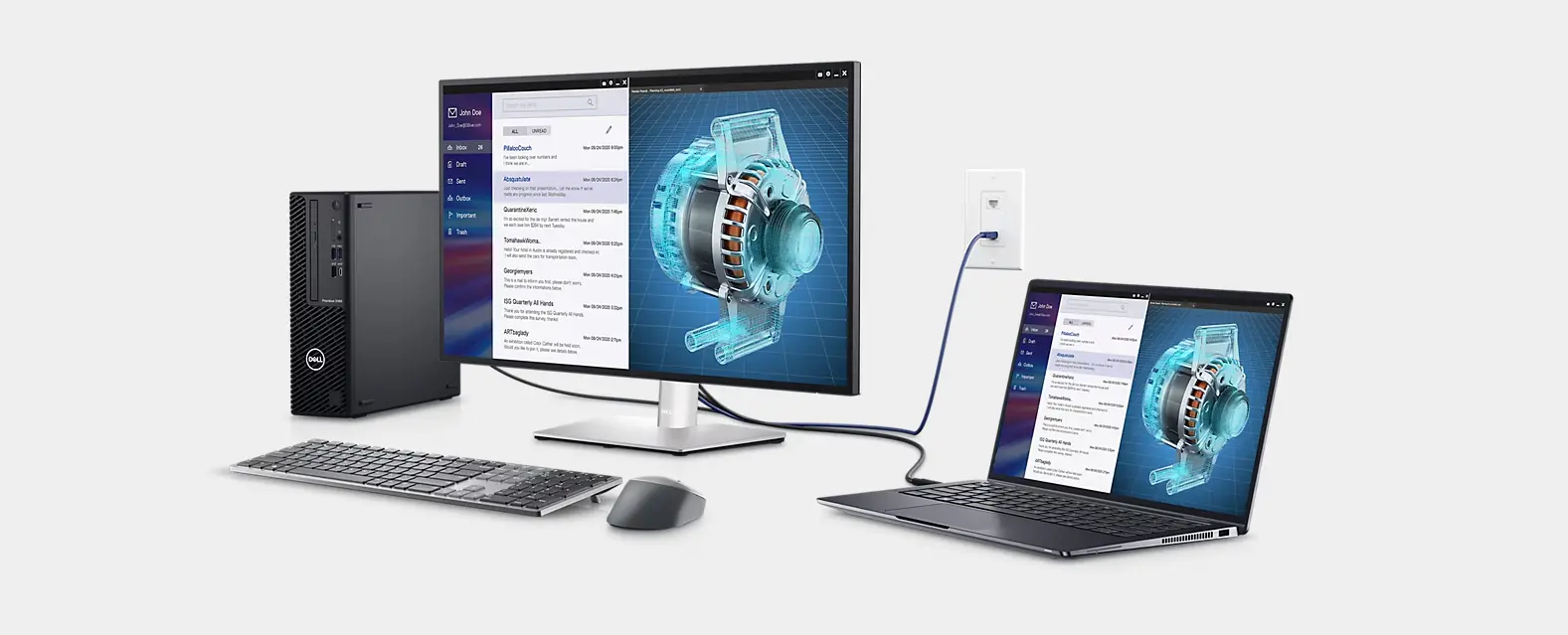

Your hub for connectivity
Jumpstart productivity:Wake up and power your laptop with a Power Sync feature.
Enhanced connectivity:Streamline your workspace with extensive connectivity ports including USB-C (up to 90W power delivery), RJ45 (Ethernet), DP1.4, and HDMI. Quick Access USB-C (up to 15W of power charging) and super speed USB 10Gbps ports enable easy connections and fast data transfers.
A more organized workspace:Single cable USB-C connectivity offers the flexibility of connecting to multi-vendor USB-C systems, reducing cable clutter and enabling quick transitions from the desk.
Network ready:Get enhanced manageability with MAC Address pass-through, PXE Boot, and Wake-on-LAN conveniently built in.
Productivity unlocked
Multitask better:Connect to two PC sources and Auto KVM will seamlessly switch controls over to the second connected PC. Use KVM (keyboard, video and mouse) feature to control both PCs with a single keyboard and mouse.
See more on one screen:View content from two PC sources with Picture-in-Picture (PiP) and Picture-by-Picture (PbP).

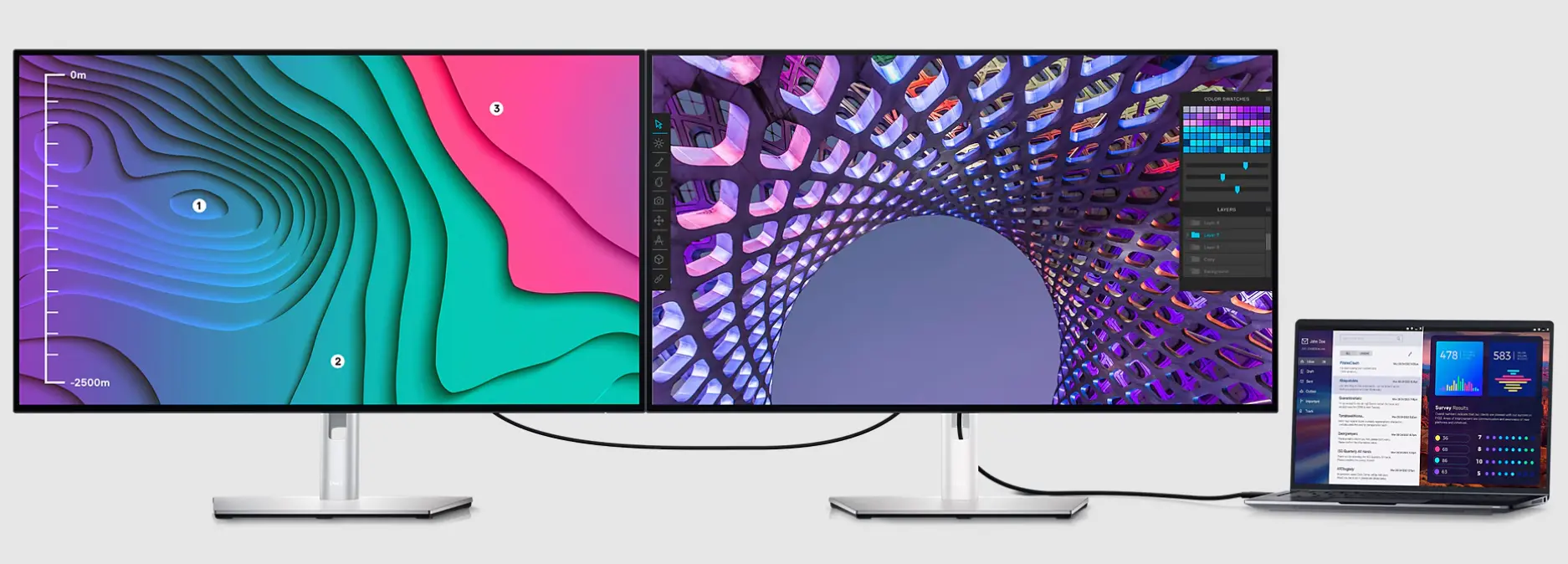

Expand your productivity: Experience uncompromised picture quality by daisy chaining two 4K monitors. U3223QE is the world’s first 31.5" 4K monitor which allows daisy chaining of an additional 4K monitor at full resolution via USB-C—enabled by Display Stream Compression (DSC).
Built for comfort
Tilt, swivel, pivot and adjust the height of your monitor so you can work however you’re most comfortable.
Connectivity options
Ports and slots

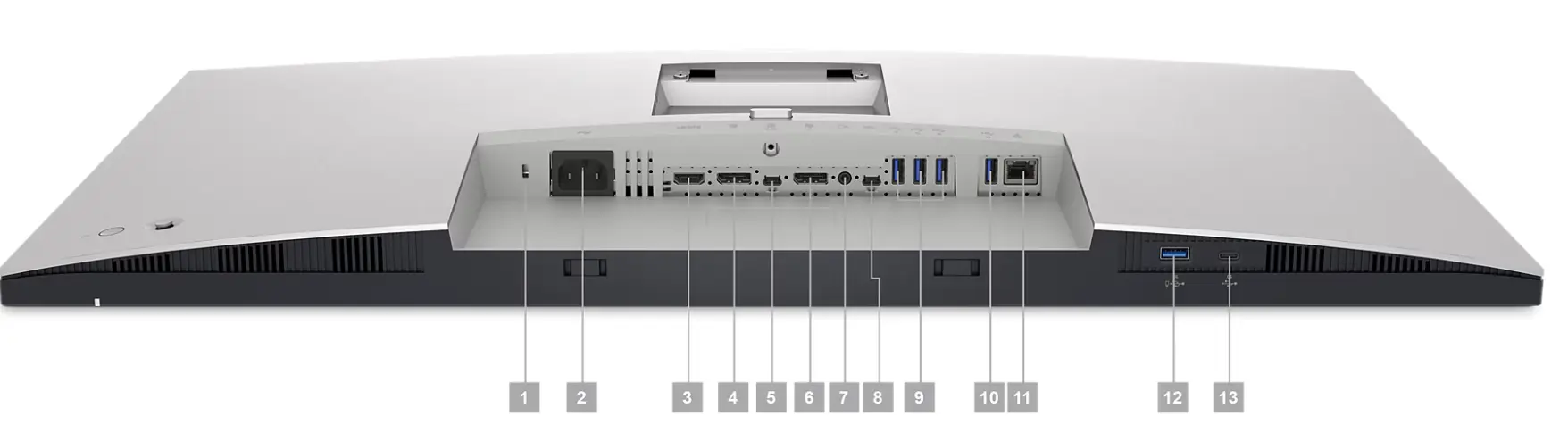

Bottom and rear view
1. Security lock slot (based on Kensington Security Slot™) 2. Power connector 3. HDMI port 4. DisplayPort in 5. USB-C port 6. DP port (out) 7. Audio line-out port | 8. USB-C upstream port 9. (3) Super speed USB 10Gbps (USB 3.2 Gen2) 10. Super speed USB 10Gbps (USB 3.2 Gen2) 11. RJ45 Ethernet port, 1GbE 12. Super speed USB 10Gbps (USB 3.2 Gen2) 13. USB-C downstream port |
Cables Included
1. Power cable
2. DisplayPort 1.8 M cable (DisplayPort to DisplayPort)
3. USB-C Gen2 1.0 M cable (A to C)
4. Type-C 1.0 M cable (C-C cable)
Specification
General
Display Type
LED-backlit LCD monitor / TFT active matrix
| Diagonal Size
31.5"
| Built-in Devices USB 3.2 Gen 2/USB-C hub |
USB Power Delivery 90 Watt | Panel Type IPS Black Technology | Aspect Ratio
16:9
|
Native Resolution 4K 3840 x 2160 at 60 Hz | Pixel Pitch 0.18159 mm | Pixel Per Inch 137.68 |
Brightness
400 cd/m²
| Contrast Ratio
2000:1 / 2000:1 (dynamic)
| Color Support 1.07 billion colors |
Color Gamut 100% Rec 709, 100% sRGB, 98% DCI-P3 | Response Time 8 ms (gray-to-gray normal); 5 ms (gray-to-gray fast) | Horizontal Viewing Angle
178°
|
Vertical Viewing Angle
178°
| Screen Coating
Anti-glare, 3H Hard Coating
| Backlight Technology
LED backlight
|
Features
Mercury free, arsenic-free glass, Delta E<2 calibration
| Built-in Speaker
No
| Dimensions (WxDxH)
28.1 in x 9.2 in x 18.5 in - with stand (lowest position)
|
Weight 22.84 lbs | Keyboard / Mouse Interface USB |
Connectivity
Interfaces
|
Mechanical
Display Position Adjustments Height, pivot (rotation), swivel, tilt | Tilt Angle
-5°/+21°
| Swivel Angle
-30°/+30°
|
Height Adjustment 5.9 in | VESA Mounting Interface 100 x 100 mm | |
Miscellaneous
Features
Security lock slot (cable lock sold separately), VESA interface support, anti-theft protection, halogen free
| Cables Included
| Compliant Standards
RoHS, BFR-free, PVC-free
|
Power
Input Voltage
AC 100-240 V (50/60 Hz)
| Power Consumption (On mode)
29.4 W
| Power Consumption SDR (On mode) 29.4 kWh/1000h |
Power Consumption HDR (On mode) 26.1 kWh/1000h | Power Consumption (Max) 220 Watt | Power Consumption Stand by 0.3 Watt |
Power Consumption (Off Mode) 0.2 Watt | On / Off Switch Yes |
Dimensions & Weight
Dimensions & Weight Details
|
